| Quantity: | |
|---|---|
FDS-MW-2022
vikingdetector
8543709100

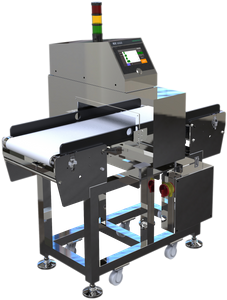

The multi-frequency conveyor belt metal detector is widely used in the field of food processing and cooking industry. It can detect the presence of metal objects on a conveyor belt, as well as measure their size, shape and density. These detectors are suitable for detecting all kinds of metals such as copper, stainless steel and aluminum. They are also suitable for measuring volume and weight accurately. The detectors are non-contact type which can be mounted on any vertical surface or horizontal surface. It can be used in production line for packaging materials, in transportation systems and other areas where there is a need to detect and measure large quantities of metal objects automatically or semi-automatically without human intervention at high speed with high accuracy.
If you want to ensure that your food products are safe and free of contamination, a metal detector is an essential tool in the production process.
A multi-frequency conveyor belt metal detector can be used to detect metal, metal particles, free fall, stainless steel, metal contamination, food products, pipeline metal, food safety, production lines and more.
It is an automatic reject device for pipeline system that can be used for inspection system; it can be used in food industry.
Food industry can use a wide range of detection frequency ranging from 20KHz to 1MHz with a voltage output of 500V or less.
Construction: 304 stainless steel, brushed surface finish, all plastic parts meet FDA standards
Application: high precision requirements in the food industry
Operation mode: touch screen Operating
Environment: IP65/NEMA 4X, Flushable, -10 to 40
Power supply: 220V AC, single phase (grounded), 50Hz, 100 watts minimum Multiple coil technology for maximum sensitivity
Dual frequency dual gain selection
Three test samples (ferrous, non-ferrous, 316 stainless steel)
Icon operation, convenient for users
Built-in multilingual help files (Chinese operating system)
Built-in oscilloscope Blue epoxy seal channel, hygienic clean
Integrated power supply
Spare input and output fuse
User Manual
Reject signal output is not affected by metal size
0-100m speed accuracy is not affected
Product number | FDS-MW-2022 | ||||||||
Specification type | Standard machine | Non-standard machine (customized type | |||||||
Pass width (mm) | 300 | 400（customized） | |||||||
Passing height (mm) | 80 | 100 | 120 | 150 | 200 | 250 | 300 | 350 | |
Sensitivity Fe (iron ball) | ≥Φ0.5mm | ||||||||
Sensitivity No-Fe (non-ferrous) | ≥Φ0.8mm | ||||||||
Sensitivity SUS304 (stainless steel) | ≥Φ1.0mm | ||||||||
power supply | Single-phase AC220±10% 50/60Hz | ||||||||
Overall size (mm) | 1350*780*1100 (length*width*height) | ||||||||
Machine material and process | Food grade 304 stainless steel, laser cutting all welding process | ||||||||
Conveyor belt length (mm) | 1350 (can be customized) | ||||||||
Conveyor belt material | Food grade PVC tape (PU tape, plate chain optional) | ||||||||
Conveyor belt height (mm) | 700±50(can be customized) | ||||||||
Conveying direction (facing the operation panel) | Left-to-right (requires right-to-left customizable) | ||||||||
Operating Screen/Language | LCD/Chinese and English | ||||||||
Auto setup function | Have | ||||||||
Parameter storage quantity | 100 kinds | ||||||||
Alarm method | Sound and light alarm, alarm shutdown (alarm light, optional rejection method) | ||||||||
motor | 90W motor | ||||||||
Load capacity | 25Kg | ||||||||
belt speed | 25m/min (adjustable speed motor can be customized) | ||||||||
Total Weight | About180Kg | ||||||||
1. The above sensitivity parameters are the test results when the machine is empty without environmental interference. The actual application will be slightly different due to the use environment and the interference of the components of the detected object!
2. Other dimensions can be customized by consultation.
Related models | ||||
| Product Name | Picture | Reference price | Mini Order (PCS) | Product demensions after package |

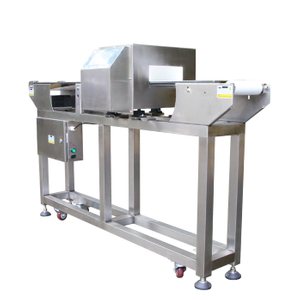

| VikingMTD-DT3010 metal detector Head (Aperture tunnel width400mmheight120mm) |  | Less than 3000$ | 85*42*80cm 180KG | |
| VikingFSD-D3010 food metal detector (Aperture tunnel width400mmheight120mm) |  | Less than 2650$ | 1 | 155cm(L)*110cm(W)*120cm(H) Cross weight 280KG |
| VikingFSD-C3010 food metal detector (Aperture tunnel width400mmheight120mm) |  | Less than 3200$ | 1 | 155cm(L)*110cm(W)*120cm(H) Cross weight 280KG |
| VikingFSD-T3010 food metal detector (Aperture tunnel width400mmheight120mm) |  | Less than 3500$ | 1 | 155cm(L)*110cm(W)*120cm(H) Cross weight 280KG |
| VikingFSD-DT3010 food metal detector (Aperture tunnel width400mmheight120mm) |  | Less than 4500$ | 155cm(L)*110cm(W)*120cm(H) Cross weight 280KG | |
| VikingFSD-MT3010 food metal detector (Aperture tunnel width400mmheight120mm) |  | Less than 7500$ | 155cm(L)*110cm(W)*120cm(H) Cross weight 280KG | |
| Detail specifications | ||||
| Full SUS 304 Machine structure FDA standard conveyorbelt Belt height from earth 65cm Rejector system :Automatic stop With Buzzer and lamp alarming onveyor belt speed : 25meters per minute Power Supply 110V or 220V 50/60Hz | ||||
