Under Vehicle Scanning System (UVSS)

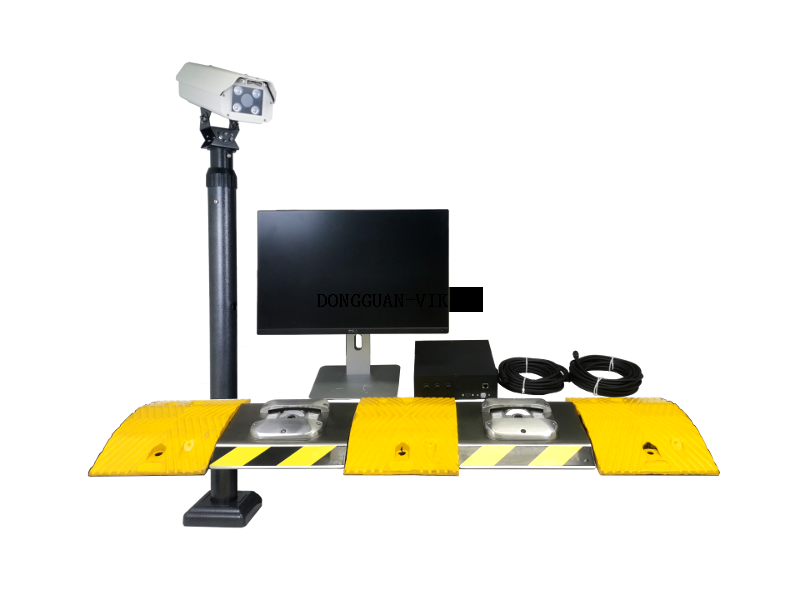

UVSS FIXED 2022FFflush mount under vehicle Surveillance system is composed of Under Vehicle Scanner, License Plate Recognition Camera, Server, Speed Ramp and so on. After installation, the height of the stainless steel cover is less than 3 cm, will not affect vehicles passing through.
Availability:
Quantity:
  • UVSS FIXED 2022F
  • vikingdetector
  • UVSS FIXED 2022F





UVSS FIXED 2022FF scan effectively scan and inspect the chassis of vehicles to search and analyze for suspicious objects or contraband such as drugs and weapons. The system is ideal for government, military, transportation and corporation facilities requiring security checkpoints for vehicles such as vans, tractor trailers, buses and passenger vehicles.

Except chassis, the LPR Camera and optional Surrounding Cameras in the system can capture video clips of vehicle in different direction, provide all-round surveillance.

Dual Mode Surveillance System Introduction:

------------------------------------------------------------------------------------------------------------------------

UVSS FIXED 2022FFis a Dual Mode Under Vehicle Surveillance System

which can generate area scan image and linear scan image simultaneously and thus have benefits from both technology.

Linear scan technology guarantee high image generation rate

regardless of harsh environment and lens contamination.

Area scan technology guarantee low distortion and consistent images

for same vehicle, and make it possible for further AI algorithm.

 airport security surveillance system

Advantages:

------------------------------------------------------------------------------------------------------------------------

· Dual mode scanner, generate area scan image and linear scan image simultaneously.

· High resolution imaging, output 4096P color images.

· Real time imaging, scanned parts of chassis will show up on display in real time.

· Support vehicles with different height of chassis, no limitation for vehicle length.

· Embedded bi-directional triggers, support bi-directional scan.

· Bi-directional LPR function can capture and recognize both front and rear license plate.

· Built rugged with stainless steel, designed to withstand harsh environments.

· Provides all kinds of ISP functions, such as Brightness adjust, Saturation, Color Balance etc.

· Support high vehicle speed, up to 100km/h.

· Modular design, repair system by replacing with spare parts within 10 minutes.

· Ultra slim design, only needs to dig into ground for less than 5 cm for installation.



Specification:

------------------------------------------------------------------------------------------------------------------------

Under vehicle surveillance system

Area scan speed

Forward: 0 – 100 km/h, Backward: 0 – 25 km/h

Linear scan speed

Forward: 0 – 20 km/h, Backward: 0 – 20 km/h

Height limit

50 – 2000 mm

Width limit

< 4500 mm

Length limit

No limit

View angle

> 180°

Resolution

> 10000 x 4096

Capture rate

> 99.9%

Imaging time

Real time

Auto exposure

Support

Protector material

304 stainless steel

Load bearing

60 tones (vehicle weight)

Above ground

3 CM

Dimension

1200mm x 300mm x 75mm

Weight

27 KG

Working temperature

-40℃ - 70℃

Protection level

IP68

Server

Server

CPU::i5, Memory: 4G, Hard disk: 128G

Power consumption

< 25W

Power supply

DC 12V

Working temperature

-10℃ - 50℃

Dimension

235mm x 165mm x 50mm

Weight

40 KG

Control Box

Vehicle detector

2 channel

Detector sensitivity

4 level

POE

8 ports 10/100/1000M RJ45

POE standard

IEEE802.3af/at

ETH

1 port 10/100/1000M RJ45

Scanner connector

1 set

External trigger

2 channel

Power supply

AC 220V

Working temperature

-10℃ - 50℃

Dimension

263mm x 150mm x 78mm

Weight

2 KG

License Plate Recognition Camera

Sensor

1/2.8 inch CMOS

Resolution

1920 x 1080

Video codec

H264, H265

Image codec

JPEG

De-noise

3DNR

Dynamic range

96db

Aperture

Fixed aperture

Capture rate

> 99.5%

Power consumption

< 24W

Working temperature

-10℃ - 50℃

Protection level

IP65



under vehicle surveillance system
