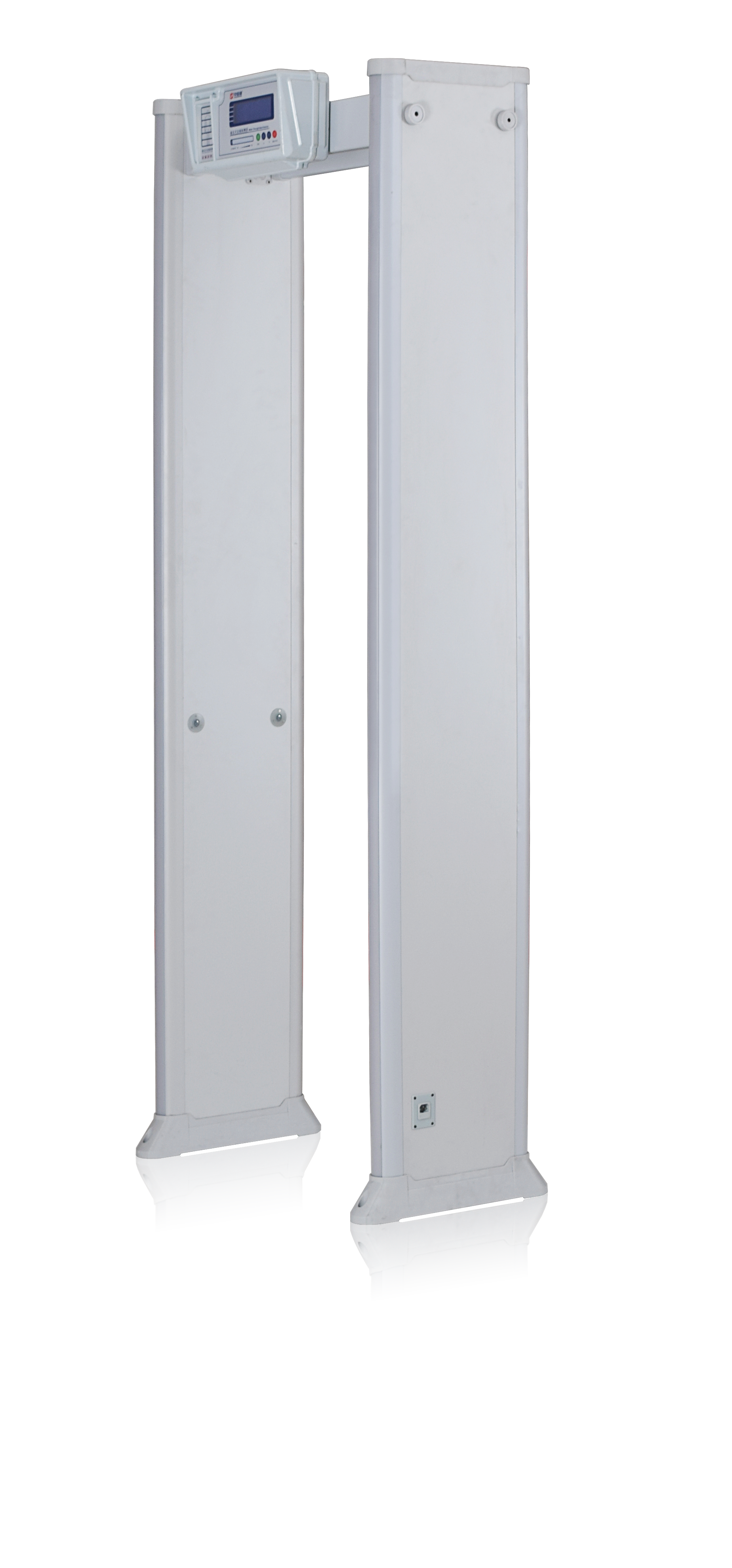

Digital multizone walk through metal detector with Touch screen

The Walk-Through Metal Detector is a digital multi-zone walk through metal detector with a touch screen. This walk through security scanner is designed for use in high-risk areas, including airports and government buildings.

The Walk-Through Metal Detector is designed for use in high-risk areas, including airports and government buildings. It is digital and multi-zone, allowing for the detection of a wide range of threats from small weapons to large knives.

The Walk-Through Metal Detector features a touch screen display that allows you to change settings quickly and easily.

3.Operating frequency can be adjusted manually or automatically

4Overall Detection technology: Overall  detection technology,no blind spot

5Optional remote control system

6Working band: 50 working bands

7400 level of sensitivity adjustment of each zone

8Security level: 0-100 level adjustable

9Statistics: Record the pass and alarm numbers

10Query function: The system has real-time information query function

11Intelligent Standby: The system has intelligent standby operation alerts

12Detection speed: more than 60 people pass and detect in 1 minute


  • VW-T6-60Z

  • vikingscan

  • 8543709100

Digital multizone walk through metal detector

The walkthrough metal detector is a digital multi-zone walk through metal detector with Touch screen. The walk through security scanner can detect any metal object hidden in the body of a person, so it can effectively avoid the smuggling of dangerous and prohibited articles into the restricted area.

The device has a high level of automation, which is convenient for both the user and the device itself. In addition, the product features an intelligent control system, which makes it possible to quickly identify suspicious objects and accurately determine whether they are dangerous or not.

Advanced function


1. Pinpoint  24 zones shows precise target locations on the left, center and right side of the body from head to toe.

2. optional 48 working hours backup battery

3.. Optional Can connect PC terminal that change specification of WTMD

4. Quick setting for 72 application occasions in the program,user can according to different occasion to setting

5. Have 4 kinds infrared mode: IR ON/IR OFF/Front group IR ON/Back group IR ON

6.standby green light indicate

7.High capability of anti-interference: The adoption of digital, analogy and left and right balanced technology can prevent false or omitted alarming, which greatly enhance the capability of anti-interference

8.Manually setting of working frequency.Can effect to avoid  interference by each other .100 can be put side by side at intervals of only 50cm without mutual interference

9.Harmless to human body: Low intensity magnetic field that is harmless to heart pacemaker installed in human body, pregnant women, magnetic floppy, recording tapes, etc.




Model Number


Vertical dimension


Vertical channel size


Main box packing size


Detection door packing size


Net weight of main box/detectiondoor


Gross weight of main box/detection door


Detection zones

24 zones

Working voltage


Power consumption


Each zone sensitivity

1-400 Level

Security level

100 Level

Working frequency range
